Product Description

The design concept of the greenhouse is to “adhere to the principles of science and practicality.” Adhere to the principles of improving the utilization rate of land resources, energy conservation, water conservation and high efficiency. Adhere to the principle of choosing advanced, reliable and applicable materials and equipment for greenhouse structures. Therefore, in accordance with the construction requirements, we select the best imported or domestic products for the key parts of each system.

Besides a nice appearance, a glass greenhouse has high light transmittance over 90%, provides good anti-corrosion and fire resistance performance strong ability to resist wind and snow.
We can also design according to different climate.
Item
Details
Structure Type
Venlo Type Steel Frame
Cover Material
4–5mm Single / 6–8mm Double Tempered Glass
Span Width
6m, 8m, 9.6m, 10.8m, 12m
Bay Spacing
4m – 6m
Ridge Height
4.5 – 6.5 m
Length
30 – 100+ m
Wind load
0.6KN/m
Snow load
0.5KN/m
Dead load
18kg/m
Rainwater drain capacity
140mm/h at maximum
Drainage System
Integrated PVC Gutter
Ventilation System
Manual or Automated Roof & Side Vents

Glass

Tempered glass / 5+6+5mm hollow glass

High shock resistance / Anti-drip, Anti UV / Light transmittance>90%

Colour: white

Service life: over 25 years

Other option: diffuse glass

Cover material

5mm tempered glass on the roof, 5+6+5mm double-layer glass at the sides. All glasses are installed with an aluminum alloy frame, sealed by an EPDM rubber strip.

Structure

Venlo type hot-dip galvanized steel structure, good anti-corrosion ability, service life over 20years.

Other devices

External and internal shading systems, roof and side windows, cooling system, fully automatically controlled in one greenhouse control system

Construction process

Infrastructure

Commercial Multi-Span Glass Greenhouse with Hydroponic System

Overall skeleton

图片2 1

Covering material

图片3 1

Ventilation system

图片4 1

External shading

图片5 1

Internal sunshade

图片6 1

Cooling system

图片7 1

Drainage system

图片8 1

Electronic control system


Heating system


Seedbed


Product Photos

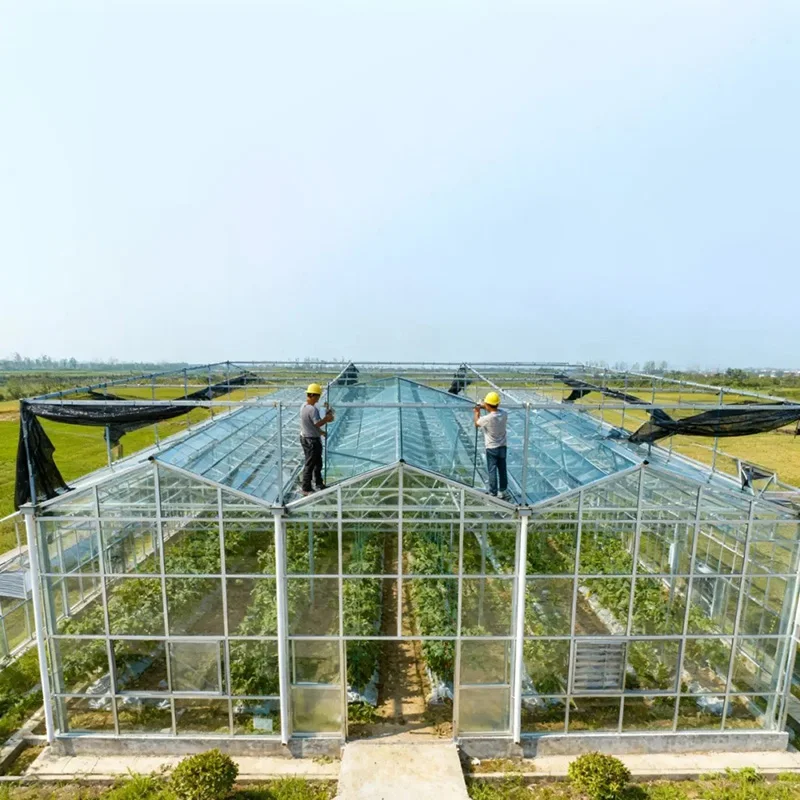

H91775bbe1a3a4443af6198c7d77294a8Y

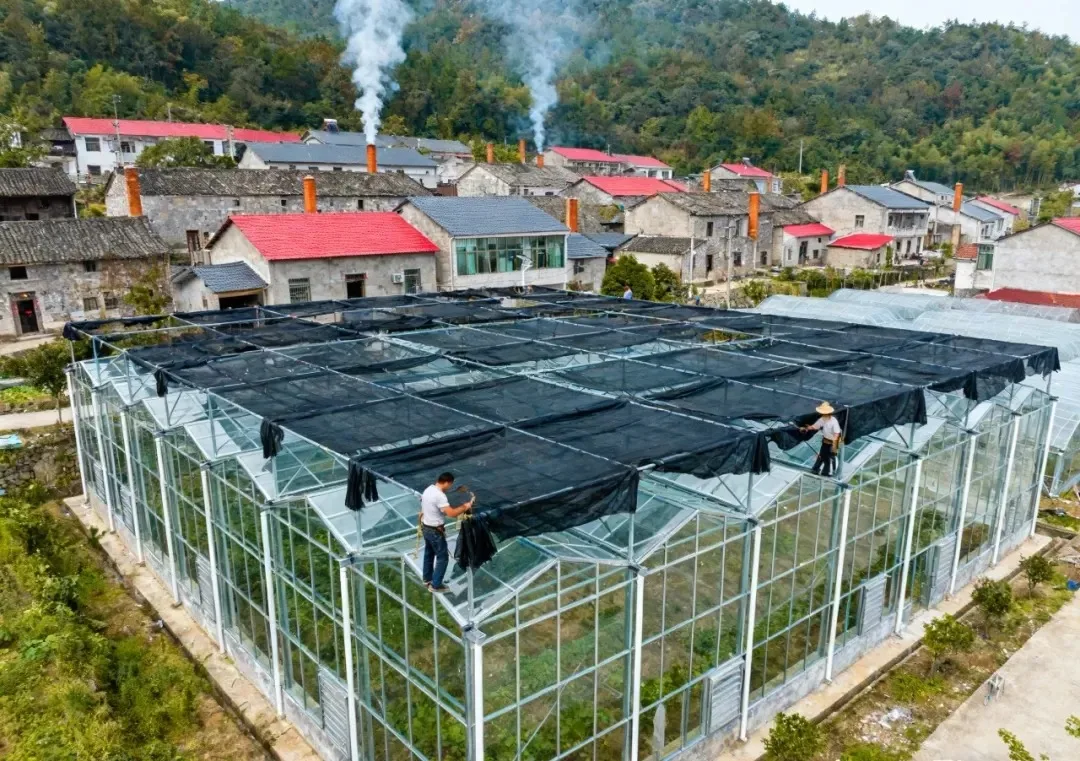

H247172cba65e40888dc465b5e95c6b55Y

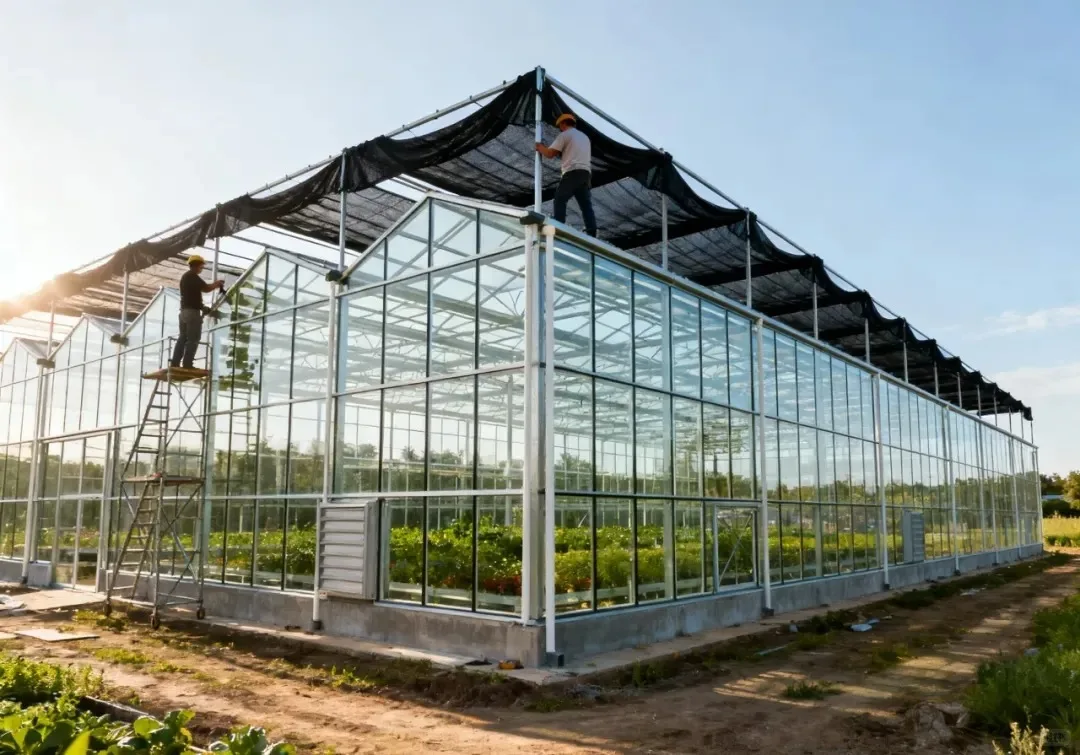

Hf0e5df6c58bd46d2baf5148e50ab4db9I

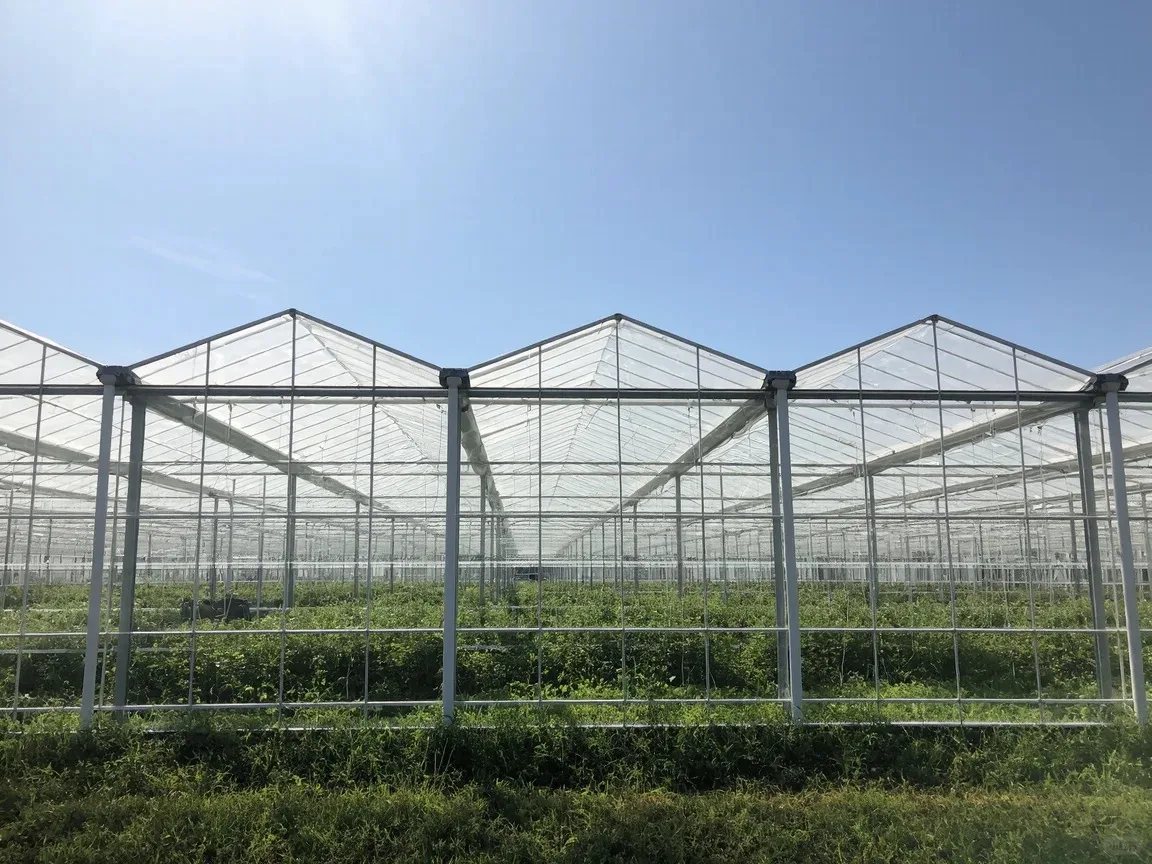

H14d38d36d13f40a2b1e459493ac5db49c

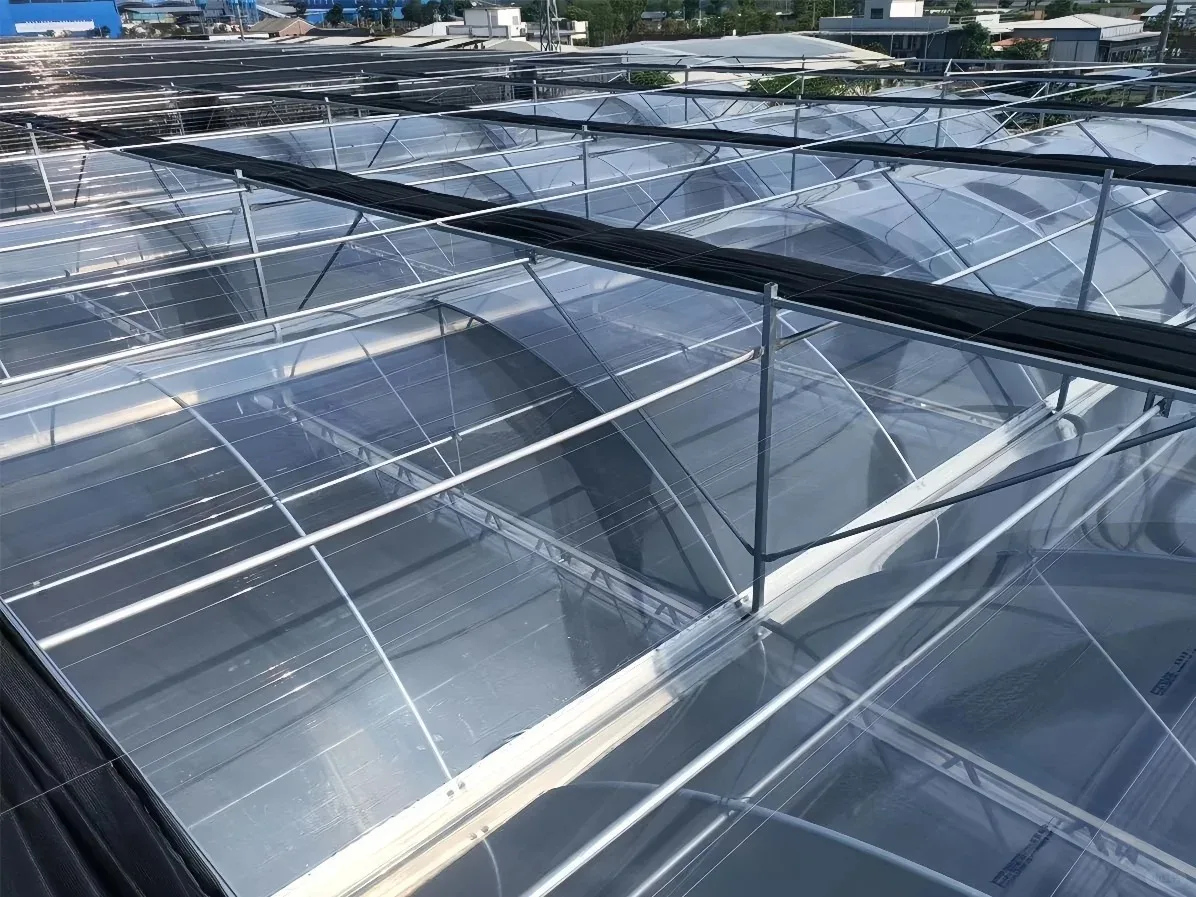

H2a81a03d79954bd3813236d1f023f9a4K

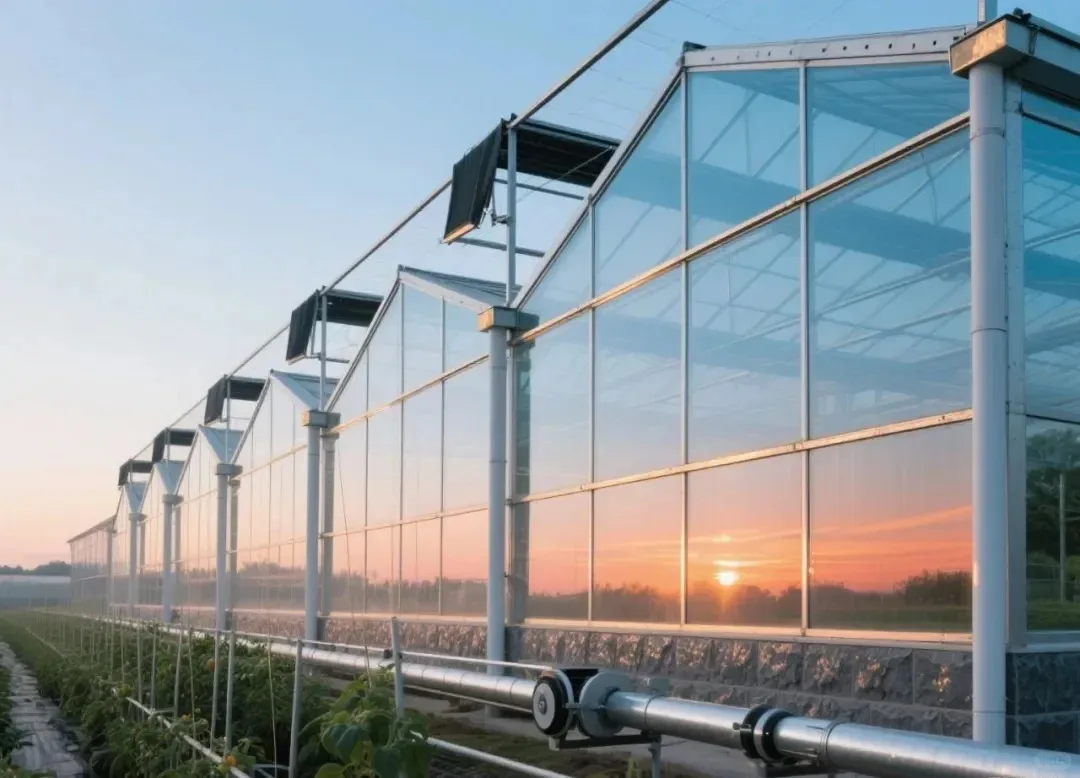

H680684b3a2e4428cb23d2cc14c7c78c0I

Integrated Venlo-Type Glass Greenhouse System for Large-Scale Agriculture

Size: Large
Type: Multi-Span Agricultural Greenhouses
Place of Origin: Jiangsu, China
Manufacturer: Starfarm
Cover Material: Glass
Model Number: GH-MS-G-2501
Brand Name: Starfarm
Product Name: Venlo Type Glass Greenhouse
Application: Vegetable, Fruits, Flowers
Usage: Growing Vegetables, Fruits, Flowers
Material: Tempered Glass + Galvanized Steel

If you need customized products, Contact Us !

Integrated Venlo-Type Glass Greenhouse System for Large-Scale Agriculture

Size: Large
Type: Multi-Span Agricultural Greenhouses
Place of Origin: Jiangsu, China
Manufacturer: Starfarm
Cover Material: Glass
Model Number: GH-MS-G-2501
Brand Name: Starfarm
Product Name: Venlo Type Glass Greenhouse
Application: Vegetable, Fruits, Flowers
Usage: Growing Vegetables, Fruits, Flowers
Material: Tempered Glass + Galvanized Steel

If you need customized products, Contact Us !
